VNA Pallet Racking Solution: Seamless Integration with WMS System and Three-Way Forklift

Client name: Jinshan XXX Company

Rack type: VNA Pallet Racking

Project Brief:

Jinshan XXX Company is based in Jinshan, Shanghai. The company focuses on the production of new aluminum materials and automotive lightweight components.

After learning about Sunnyrack online and through our official website, the customer got in touch with our team. Our sales engineers visited the customer’s warehouse on the same day for on-site investigation, field measurement, and customized warehouse racking solutions according to actual storage demands. Finally, Sunnyrack delivered a VNA pallet racking solution integrated with three‑way forklifts and WMS system to satisfy its high-density and digital storage goals.

Rack Parameters:

Warehouse Dimensions: L124 m x D35 m x H11 m, with a floor area of 4340 m²

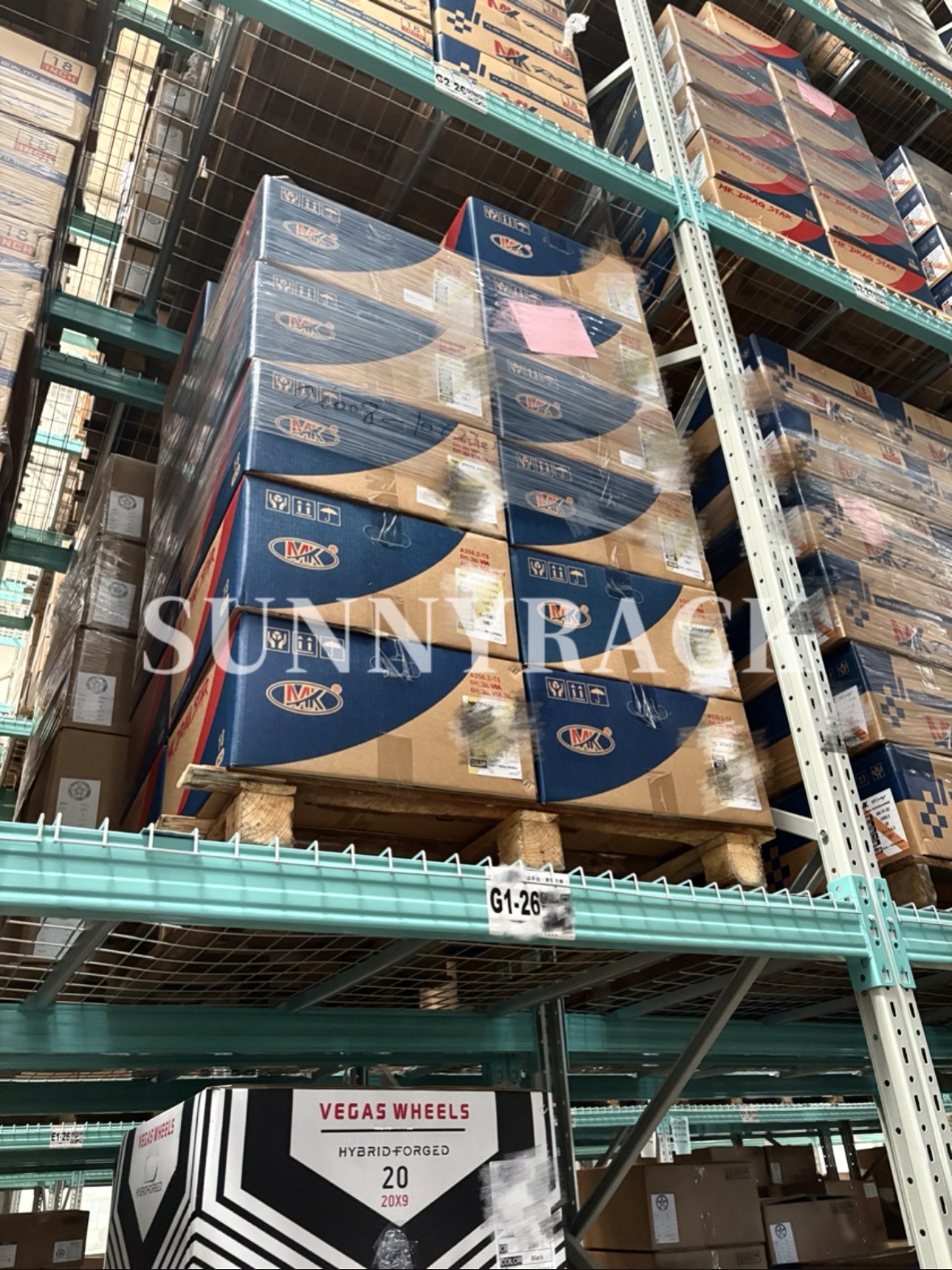

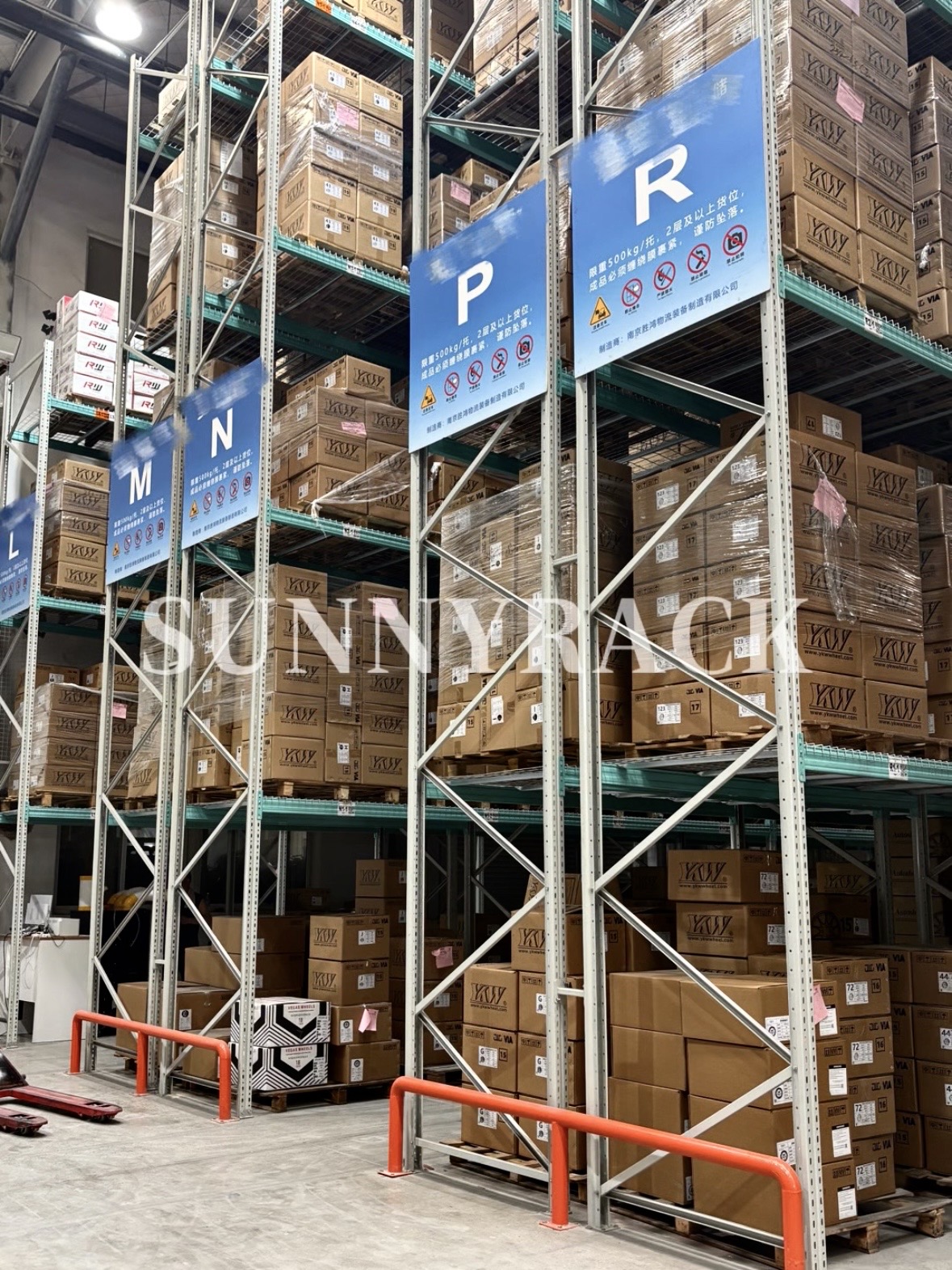

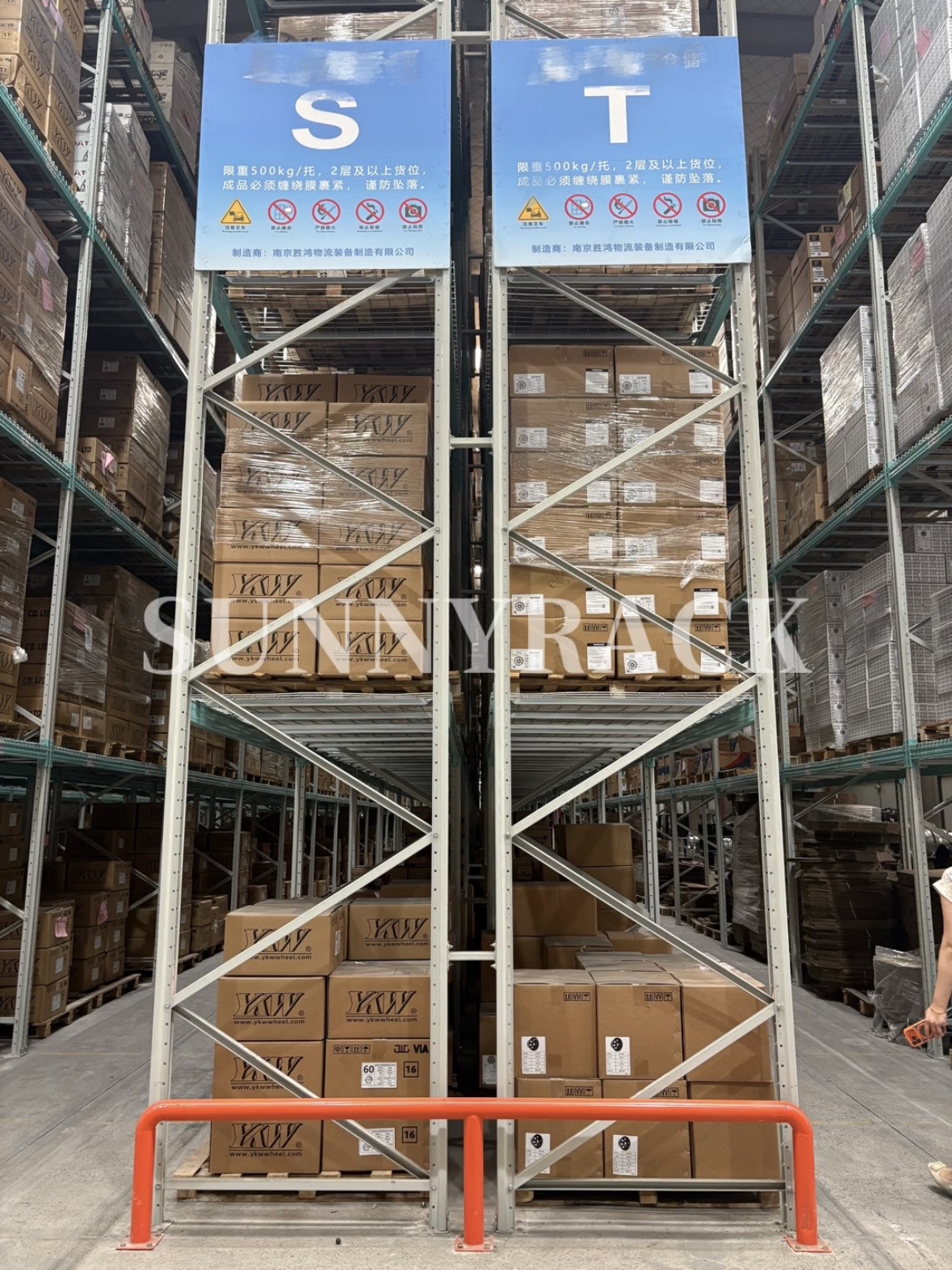

Rack Dimensions (Area A): L2800 mm x D1200 mm x H7050 mm

Rack Dimensions (Area B): L2800 mm x D1200 mm x H9675 mm

Pallet Size: L1200 mm x D1200 mm x H1800/2000 mm

Rack Levels: 3 beam levels, 4 storage levels / 4 beam levels, 5 storage levels

Total Pallet Positions: 5400

Rack Load Capacity: 500 kg per pallet, each layer stores 2 pallets

Project Overview:

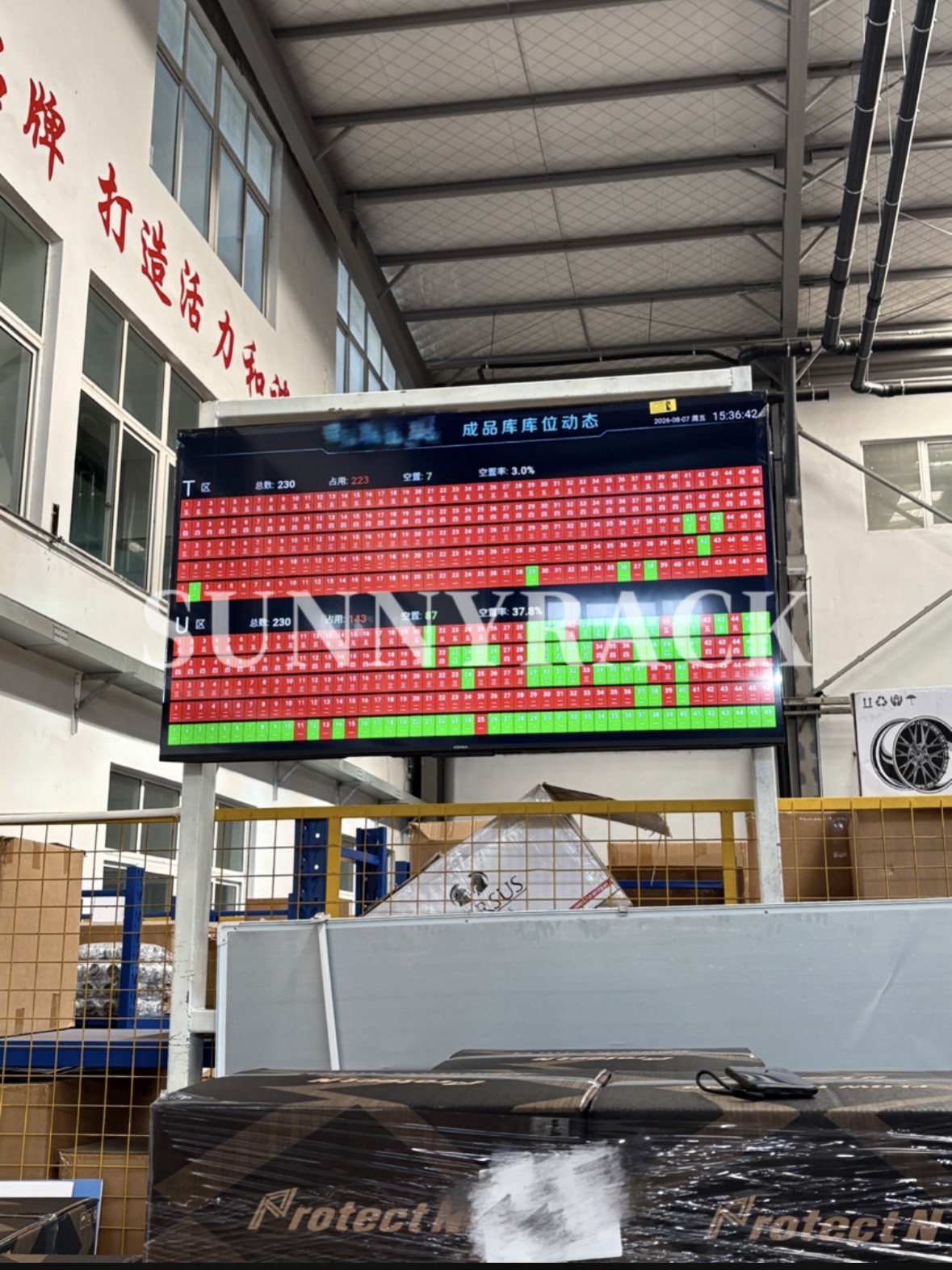

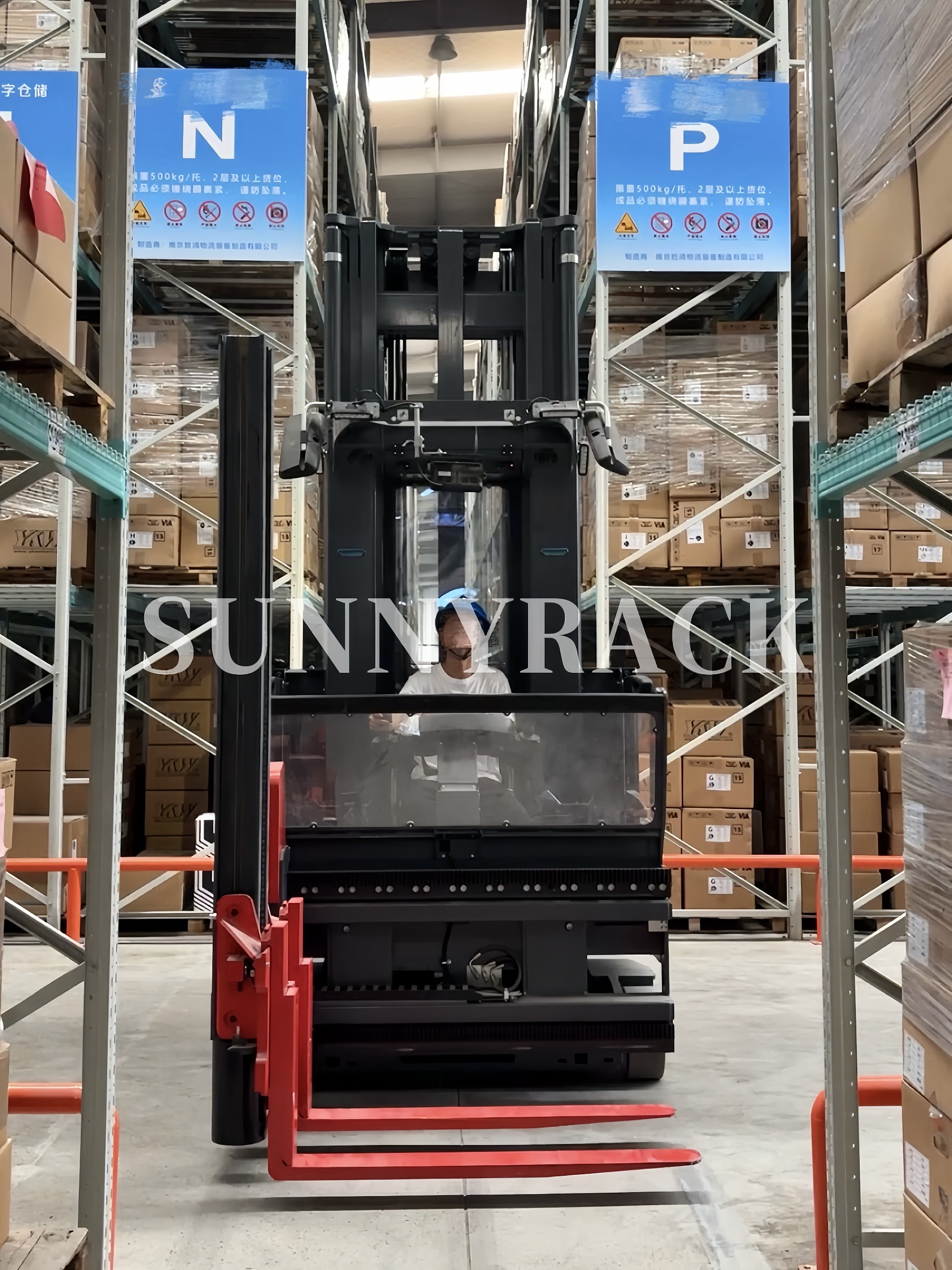

VNA (Very Narrow Aisle) Pallet Racking boosts warehouse space‑utilization by narrowing working aisles. To realize high‑density storage together with digital inventory control, Sunnyrack built an integrated solution combining VNA racks, three‑way forklifts and the WMS warehouse management system.

All incoming goods are loaded on pallets with unique QR‑code labels. Operators scan pallet QR‑codes for inbound tasks, and the WMS system assigns target storage locations.

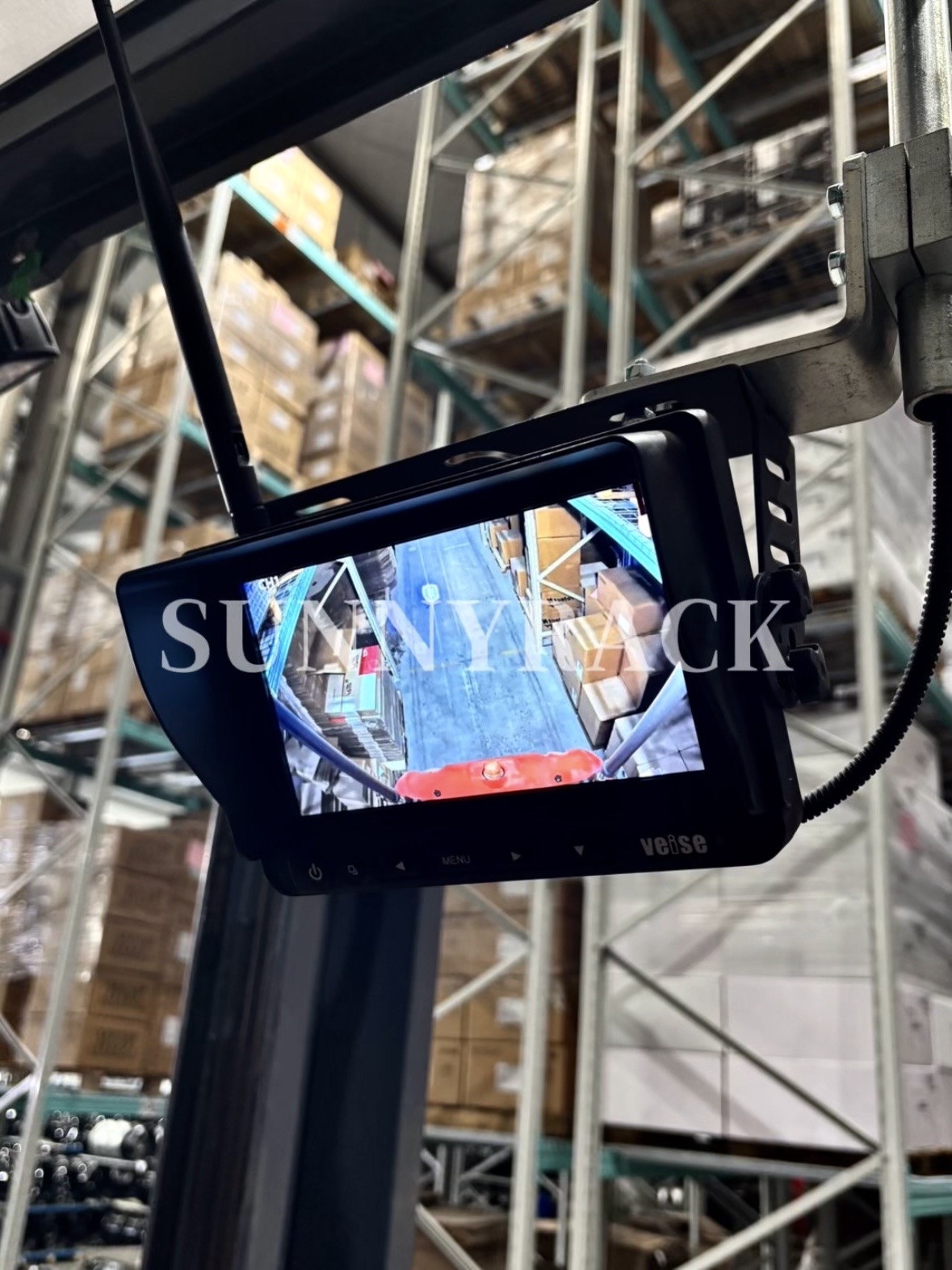

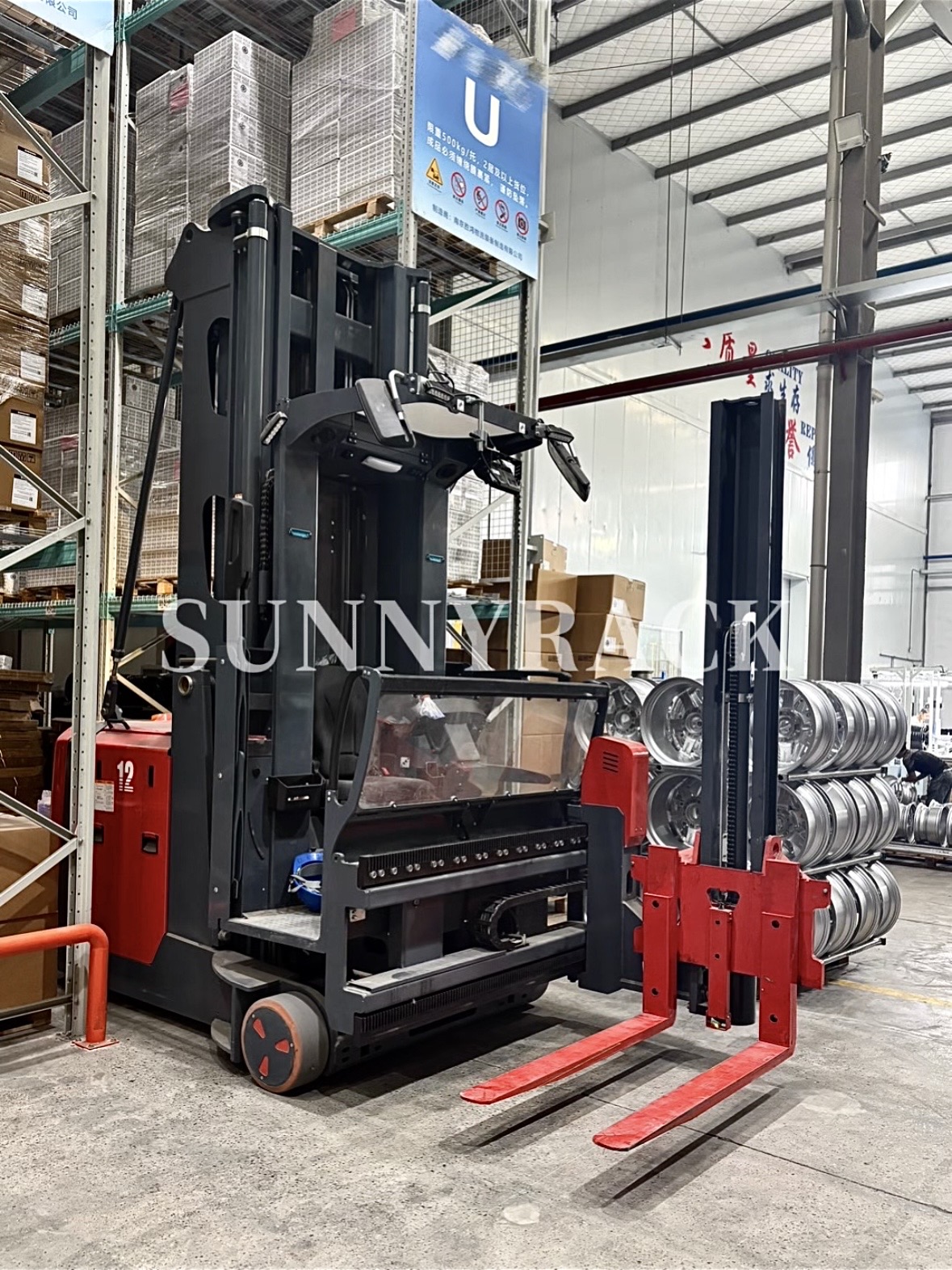

Guided by WMS instructions, the three‑way forklift transports pallets to assigned positions. Its on‑board screen delivers clear operation prompts, greatly simplifying high‑level storage work. After pallet placement, staff scan QR‑codes on rack beams, feeding real‑time location data back to WMS to align physical goods with system records and prevent inventory errors.

As a professional racking manufacturer, Sunnyrack supplies various racking as our core product, alongside value‑added support including three‑way forklift selection and WMS docking consultation. This integrated setup fits medium‑to‑large warehouses with high throughput and strict inventory‑accuracy requirements.The project is now in stable operation and wins high recognition from the client.
