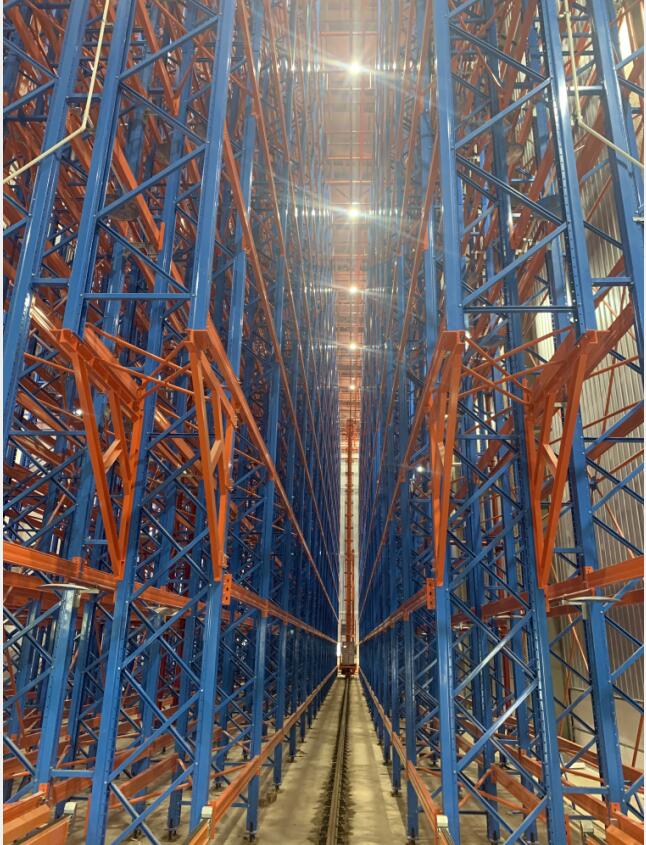

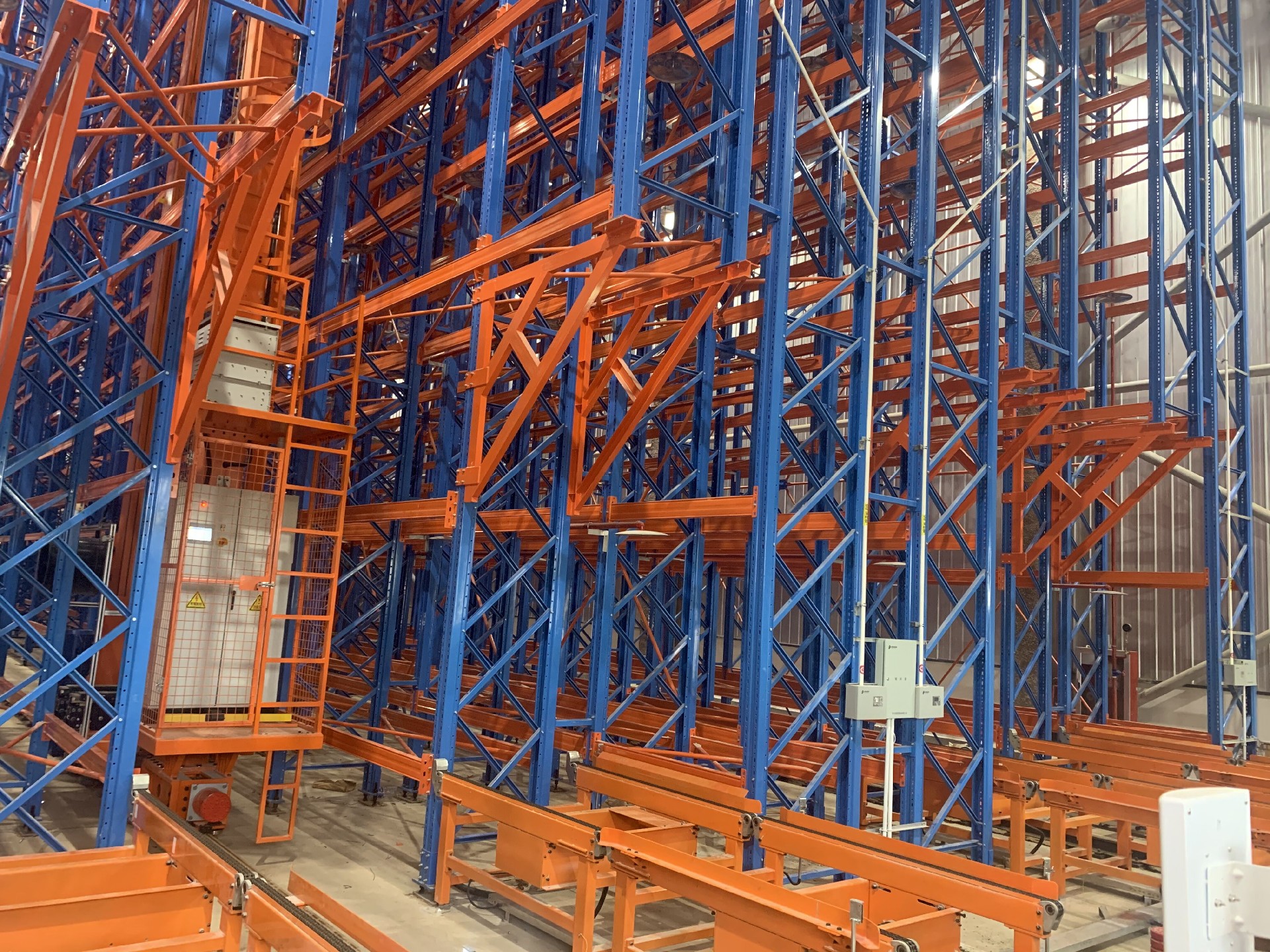

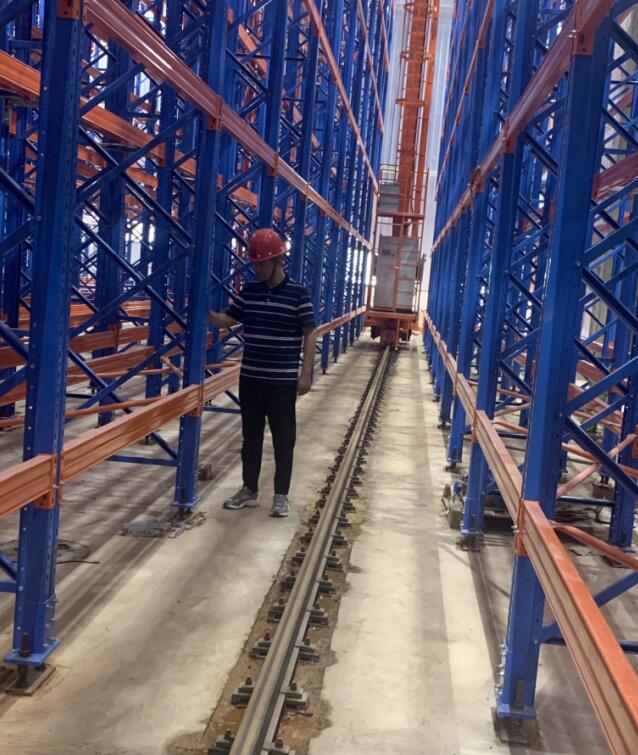

Sunnyrack undertook the AS/RS of a Fujian Longyan Chemical Group integrated by a Jiangsu Intelligent Equipment Company recently. The project was completed and qualified.

Customer Name: A Chemical Company in Fujian

Rack Type: AS/RS (automated storage/retrieval system)

Warehouse Size: L 65M * W 20M * H 22M, total area 1100m²

Pallet Specification: L1200*D1200*H1350 (mm)

Rack Specification: L2700*D1000*H20150 (mm)

Rack Layer: 11 layers

Total Pallets: 4430

Racking Arrangement: double deep, 3 straight aisles

Load Capacity: 1300kg/pallet
